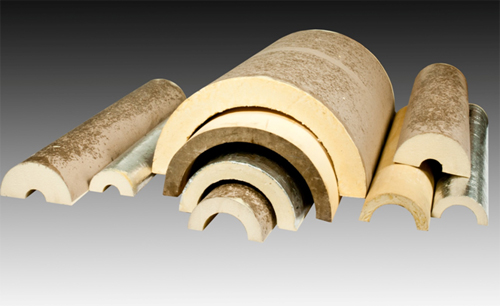

PU Pipe Section : To Suit 12mm NB to 750 mm NB Wall thickness ranging from 15 mm to 300 mm STD. Length : 1000mm, We also offer pipe in shiplap Specific dimensions can be made to order. Pipes are made in the form of half round X 1000mm long to suit various Nominal bores of Pipe lines for insulation purpose.

PUF Slabs/Pipe Sections/Supports

Most of the manufacturers do not have pipe sections for sizes above 350 mm NB, for the larger sizes they use to cut slab sheets and paste it on the curved surface of the pipe line. This kind of insulation will not be properly insulate as the cut pieces would not touch the curve at many places and joining with bitumen will have gaps at places giving chance of air entering inside.

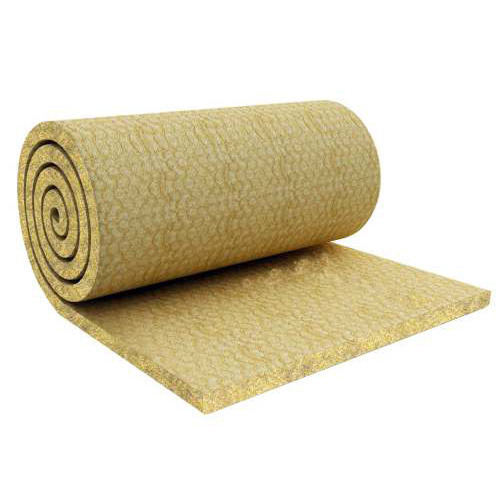

Rockwool Matresses

Rockwool Mattress is a precisely engineered bonded fibrous insulation that offers maximum resistance to the passage of heat. Rockwool Fibers are spun from selected rocks, melted at 1600°C and blended to a carefully adjusted chemical composition. Its centrifugally spun fibers have a diameter 1/20th that of human hair. These are felted using state-of-the-art technology into bonded and cured slabs to optimum density and resilience.

Rockwool Mattress consist of fine fibers spun from selected rocks melted at a high temperature and bonded with a thermosetting resin. They are then felted in a predetermined fiber lay pattern and are baked to form preformed mattresses of predetermined density & thickness with uniform fiber distribution. Mattresses are then stitched, slit and chopped to specified dimensions.

Rockwool Mattress has excellent stability and has no chicken feathering which pollutes the atmosphere during application. It has controlled thickness and density resulting in predictable heat losses.

Rockwool slab is a precisely engineered bonded fibrous insulation that offers maximum resistance to the passage of heat. Rockwool Fibres are spun from selected rocks, melted at 1600°C and blended to a carefully adjusted chemical composition. Its centrifugally spun fibres have a diameter 1/20th that of human hair. These are felted using state-of-the-art technology into bonded and cured slabs to optimum density and resilience.

Rockwool Slabs

Rockwool Slabs consist of long fine fibres spun from molten natural rock and bonded with a thermosetting resin. Rockwool Slabs have the best combination of thermal insulation and fire protection properties.

Rockwool Fibres are spun from selected rocks, melted at 1600°C and blended to a carefully adjusted chemical composition. Its centrifugally spun fibres have a diameter 1/20th that of human hair. These are felted using state-of-the-art technology into bonded and cured slabs to optimum density and resilience.

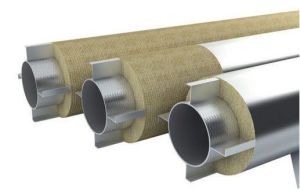

Rockwool Pipe Insulation

Rockwool Pipe Insulation is a precisely engineered, bonded fibrous insulation that offers maximum resistance to the passage of heat. Rockwool Fibres are spun from selected rocks, melted at 1600°C and blended to a carefully adjusted chemical composition. Its centrifugally spun fibres have a diameter 1/20th that of human hair. These are felted using state-of-the-art technology into bonded and cured slabs to optimum density and resilience.

Rockwool Pipe Insulation consists of fine fibres spun from molten natural rock bonded with a thermosetting resin. The sections are moulded to ensure a firm fit around the piping and the outer surface is ground to ensure that correct insulation thickness is achieved and to provide a smooth, even surface.

Rockwool Pipe Insulation products are available for hot face temperatures upto 750°C. Rockwool Pipe Insulation are supplied as one-piece sections of one metre length, upto 4” ø and in two sections for 4” N.B. and above slit along the longitudinal axis. Sections are easily installed by opening the slit and springing the section into position over the pipe.

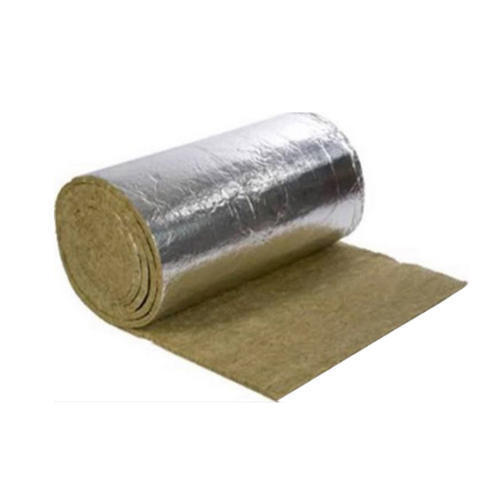

Rockwool Rolls is a highly efficient low density insulation material made from non-combustible rockwool fibers & bonded together by thermosetting resins. The product is easy to handle, cut & install. It is factory laminated with reinforced aluminium foil on one side, and if required, can be provided with glass tissue lamination on the other side.It is factory laminated with reinforced aluminium foil on one side, and if required, can be provided with glass tissue lamination on the other side.

Rock Rolls

Rockwool Rolls is a highly efficient low density insulation material made from non-combustible rockwool fibers & bonded together by thermosetting resins. The product is easy to handle, cut & install. It is factory laminated with reinforced aluminium foil on one side, and if required, can be provided with glass tissue lamination on the other side.

It is factory laminated with reinforced aluminium foil on one side, and if required, can be provided with glass tissue lamination on the other side.

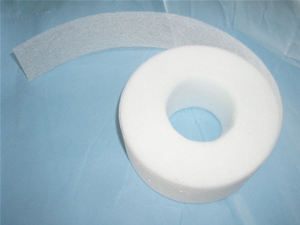

RP Tissue is a non woven, thin, flexible, uniformly bonded mat composed of technically resistant suitable Glass Fiber, distributed in a random, open porous structure, bonded together with an inert material

RP Tissue

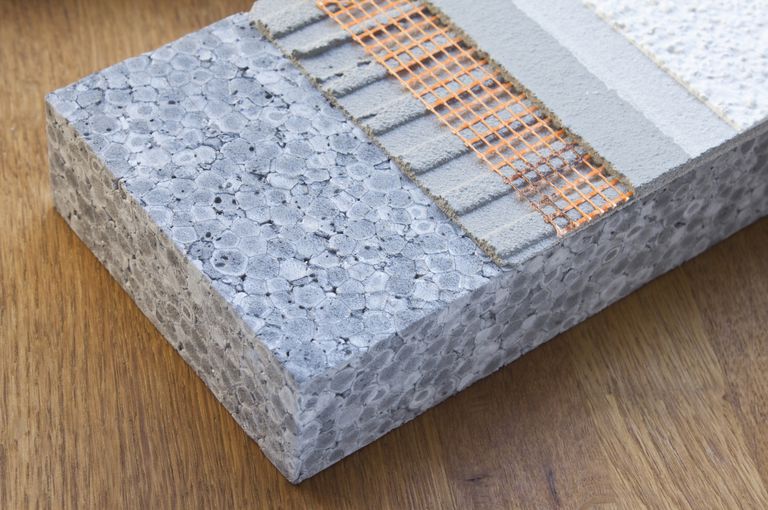

Expanded Polystrene

Expanded Polystyrene (Thermocol) offers a non hydroscopic, odorless, rigid, closed cell Expanded Polystyrene containing 98% by its volume still air entrapped in its cell and is the major reason for its excellent insulation properties. Because of its closed cell structure, it offers a remarkable resistance to unwanted heat, chill and moisture to penetrate through it and also gives a rigid, structurally strong product to withstand various kind of loads and vibrations.

It does not decay or age with the time and gives permanent life long insulation without regular maintenance. Perfect, even and plain surface makes its suitable to opt it for false roofing and easy to install, carry and plastering on it.

It is fully resistant to all concentrated acid expect (HNO3 and H2SO4) but it is non resistant to aliphatic, hydrocarbons, Ketones and chlorinated hydrocarbons and is affected by ultraviolet rays. It turns yellow and ultimate become brittle if left permanently exposed to sun.

Because of its open fibre structure, Rockwool products have excellent sound absorption capabilities preventing irritating noise pollution, by controlling it either at the source, along the path from source to receiver or at the receiver’s end. The rising demand for a mere amenable environment with as low a noise level as possible can be satisfied with Rockwool range of products, thereby contributing to better communication, productivity, health and safety of workers.

Acoustic Insulation Material For Gensets

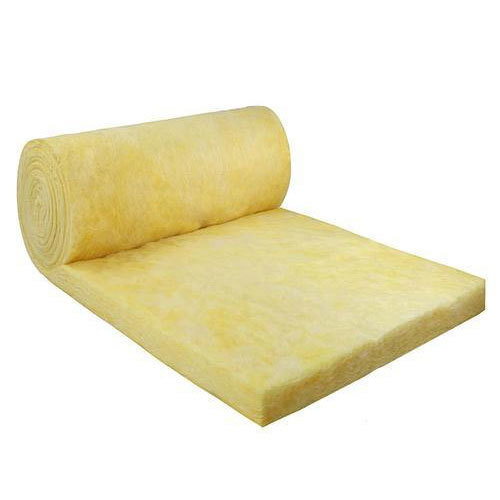

Resin Bonded Fiberglass is made of fine, long, inorganic glass fibers bonded by high temperature resin and is widely recognised for its energy conserving and sound insulating properties. Fiberglass insulation is used with great success in the process, building and air-conditioning industries.

Resin Bonded Fiberglass

Bulk Fibres
Blankets
Density: 64, 96, 128kg/m3s
Boardss
Paperss
Ropes: Thickness — 6mm, 12mm & 25mms
Temperature: Up to 1425°C

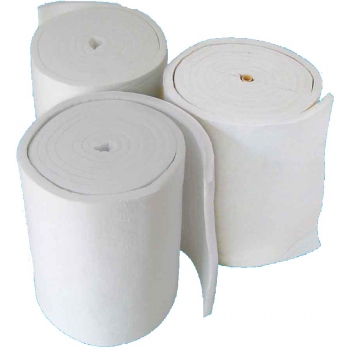

Ceramic Wool

Slabs
Tubes
Tapes Temperature: (-) 40°C to (+) 116°C

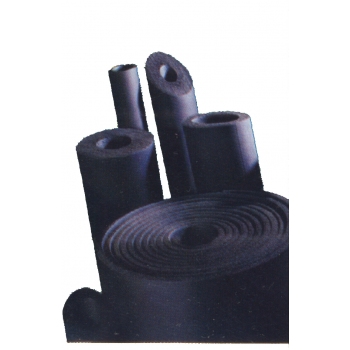

Nitrile Foam

Loose Mineral Wool As per IS:3677.
Loose Glasswool.
Ceramic Wool As per IS:14656.
Aluminium (Sheets, Coils, Foils, Bands etc.)
G.I./G.P. Sheets.
Stainless Steel (Sheets, Coils, Bands etc.)
Asbestos Fluff.
Bitumen (Various Grades for Water Proofing).
Hessian/Fibreglass Based Roofing Felts.
Anti Corrosive Materials for underground pipe coating like Coal Tar Enamel confirming to W.W.A. Specifications alongwith compatible quality of primers.
Plastic Sheets.
Screws etc.
